OTC2310K04-PIKA Raspberry Pi HAT with 4 AN231E04 Chips

Name: OTC2310K04-PIKA Raspberry Pi HAT with 4 AN231E04 Chips
Brand: Okika Devices
SKU: OTC2310K04-PIKA
Price: 156.00 USD
Availability: InStock

$156.00

OTC2310K04-PIKA

Product variants

Raspberry Pi HAT Development Board incorporating 4 FlexAnalog™ Field-Programmable Analog Array (FPAA) Integrated Circuit Components

Order Quantity: 1

OTC2310K04-PIKA Raspberry Pi HAT with 4 AN231E04 Chips

$156.00

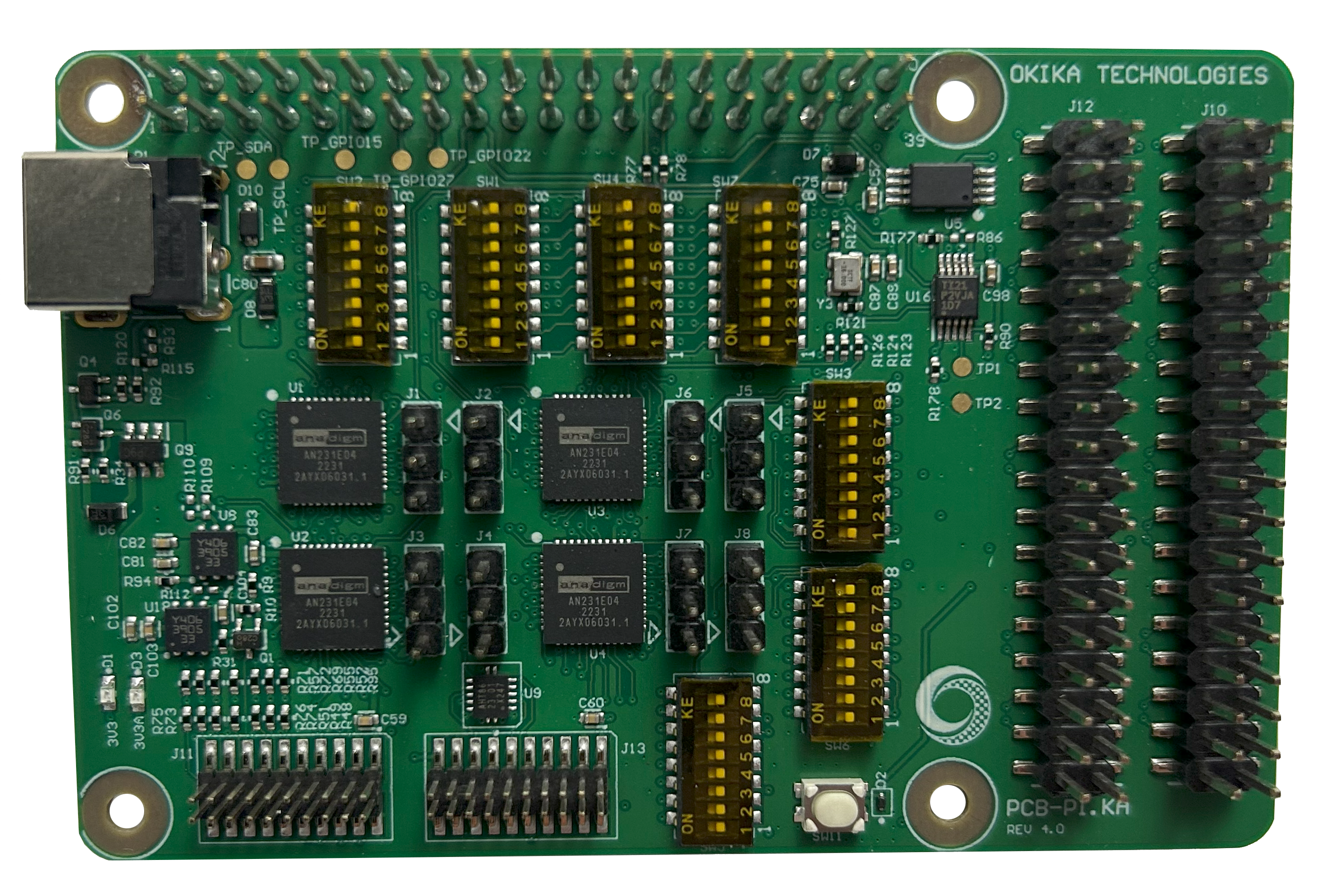

The PIKA board simplifies multi-channel analog prototyping. With four independent FPAAs and flexible routing via onboard switches, it’s ideal for building signal-processing architectures directly on your Pi.

Manual

Okika_PiKa_Python_Programming_Quick_Start.pdf

Software

AnadigmDesigner®2

Help & Support Docs

FlexAnalog™ Help & Support Docs

Featured Highlights

Quad AN231E04 FPAAs: Individually programmable, flexible signal paths.
Pi HAT Interface: Native 2x20 header, plug-and-play with Raspberry Pi.
Onboard Routing Switches: Configure chip-to-chip signal paths without jumpers.
Daisy-Chaining & Stackable Design: Expand your signal chain seamlessly.
Dual Power Options: Auto-selection between Pi and external power supply.
Open Source Python Tooling: GitHub support with pikapy example project.

Technical Specifications

Featured Chip	AN231
Number of FPAAs	4
Number of CABs	4
Power Supply	Pi Header or External
ADC Resolution	8
ADC Data Rate	250ksps
Input Filters	8x Rauch, 23kHz
Interface	SPI
Microcontroller	External Pi
Clock Source	16 MHz on-board, External

FAQs

Is this board compatible with all Raspberry Pi models?

The OTC2310K04-PIKA board is designed to work with Raspberry Pi models featuring the standard 2x20 GPIO header. Compatibility may vary with newer Pi models that change this interface, so please check the specific model before use.

Can I use this board with Arduino or other microcontrollers?

Yes, the OTC2310K04-PIKA board can work with Arduino and other microcontrollers, but it only supports 3.3V I/O. Since many Arduino boards use 5V I/O, you’ll need external level shifting.

What’s the benefit of having four FPAAs on one board?

Four FPAAs allow for parallel processing of multiple analog signal channels, enabling complex multi-channel analog designs and more flexible system architectures.

How is power managed on this board?

The board supports dual power options and can be powered either through the Raspberry Pi’s GPIO header or an external supply. It includes automatic selection and onboard regulation to provide stable +3.3V rails.

Is stacking multiple PIKA boards supported?

Yes, the board supports daisy-chaining and vertical stacking to expand the number of FPAAs and increase system complexity.

Does the board include a clock or rely on the host?

The board includes a 16 MHz onboard analog master clock and also supports using an external clock source from a Raspberry Pi.
