AN231K04-SING1 Single FlexAnalog™ FPAA Development Board

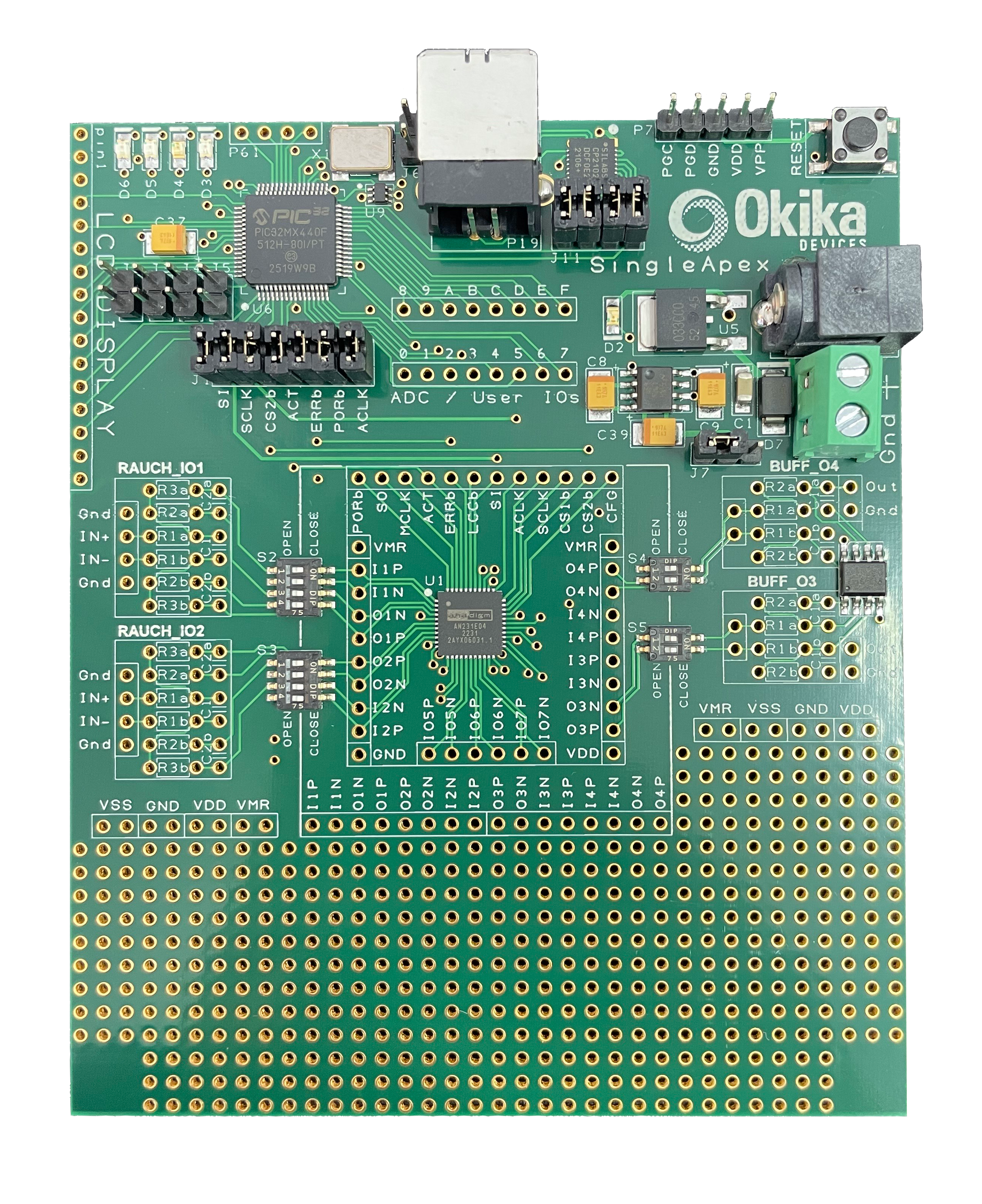

The Okika AN231K04-SING1 development board is an easy-to-use platform designed to help you get started with implementing and testing your analog designs on the FlexAnalog™ AN231E04 FPAA silicon devices. To aid development, a 32bit PIC32 microcontroller is included alongside the FlexAnalog™ FPAA device, providing an extremely powerful platform on which to develop and test embedded analog systems.  This development board contains one (1) AN231E04 FPAA part.

Features

·             Board footprint – 4.3 x 3.6 inches

·             Versatile supply requirement – single supply +4 to +9V

·             On-board regulated +3.3V supply

·             On-board generated -3.3V supply

·             Standard USB serial interface for downloading AnadigmDesigner2^® circuit files

·             32bit PIC32 with 80MHz clock, 512KB program memory, 32KB data memory, 16 x 10bit ADCs

·             16 pins from PIC32 available for use as standard I/O (RB0-15) or as 10 bit ADC channels (AN0-15)

·             Simple 5 pin header for reprogramming of PIC32

·             Option for 16MHz or 40MHz analog master clock

·             16 x 2 LCD display capable

·             Breadboard area

·             Access points to all relevant pins of the FPAA

·             Input Rauch LP filters, easily configured with passive components

·             Output LP filter buffers, easily configured with passive components

·             DIP switches for easy connectivity between FPAA, input Rauch filters, and output buffers

·             Ability to electrically isolate digital & analog sections

·             Ability to store configurations in FLASH

·             Ability to self configure with test circuit

·             Reset button

 User Manual

Link to AN231K04-SING1 User Manual:

  AN231K04-SING1_Board_Manual_10Sep24_v2
